#include <stdint.h>
#include <nftables.h>
#include <list.h>
#include <payload.h>
#include <expression.h>

Include dependency graph for rule.h:

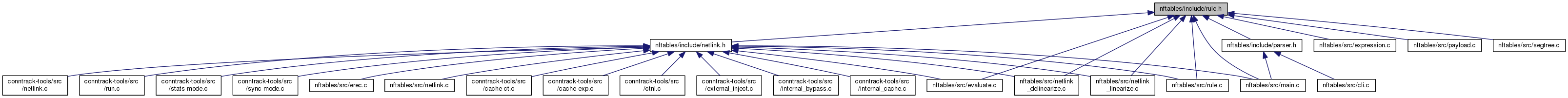

This graph shows which files directly or indirectly include this file:

Data Structures
struct	handle
	struct handle - handle for tables, chains, rules and sets More...

struct	scope
	struct scope More...

struct	symbol
	struct symbol More...

struct	table
	struct table - nftables table More...

struct	chain
	struct chain - nftables chain More...

struct	rule
	struct rule - nftables rule More...

struct	set
	struct set - nftables set More...

struct	export

struct	monitor

struct	cmd

struct	eval_ctx
	struct eval_ctx - evaluation context More...

Enumerations
enum	chain_flags { CHAIN_F_BASECHAIN = 0x1 }
	enum chain_flags - chain flags More...

enum	set_flags { SET_F_ANONYMOUS = 0x1, SET_F_CONSTANT = 0x2, SET_F_INTERVAL = 0x4, SET_F_MAP = 0x8 }
	enum set_flags More...

enum	cmd_ops { CMD_INVALID, CMD_ADD, CMD_CREATE, CMD_INSERT, CMD_DELETE, CMD_LIST, CMD_FLUSH, CMD_RENAME, CMD_EXPORT, CMD_MONITOR, CMD_DESCRIBE }
	enum cmd_ops - command operations More...

enum	cmd_obj { CMD_OBJ_INVALID, CMD_OBJ_SETELEM, CMD_OBJ_SET, CMD_OBJ_SETS, CMD_OBJ_RULE, CMD_OBJ_CHAIN, CMD_OBJ_TABLE, CMD_OBJ_RULESET, CMD_OBJ_EXPR, CMD_OBJ_MONITOR, CMD_OBJ_EXPORT }
	enum cmd_obj - command objects More...

enum	{ CMD_MONITOR_OBJ_ANY, CMD_MONITOR_OBJ_TABLES, CMD_MONITOR_OBJ_CHAINS, CMD_MONITOR_OBJ_RULES, CMD_MONITOR_OBJ_SETS, CMD_MONITOR_OBJ_ELEMS, CMD_MONITOR_OBJ_MAX }

Functions
void	handle_merge (struct handle dst, const struct handle src)

void	handle_free (struct handle *h)

struct scope *	scope_init (struct scope scope, const struct scope parent)

void	scope_release (const struct scope *scope)

void	symbol_bind (struct scope scope, const char identifier, struct expr *expr)

struct symbol *	symbol_lookup (const struct scope scope, const char identifier)

struct table *	table_alloc (void)

void	table_free (struct table *table)

void	table_add_hash (struct table *table)

struct table *	table_lookup (const struct handle *h)

const char *	chain_type_name_lookup (const char *name)

const char *	chain_hookname_lookup (const char *name)

struct chain *	chain_alloc (const char *name)

void	chain_free (struct chain *chain)

void	chain_add_hash (struct chain chain, struct table table)

struct chain *	chain_lookup (const struct table table, const struct handle h)

const char *	family2str (unsigned int family)

void	chain_print_plain (const struct chain *chain)

struct rule *	rule_alloc (const struct location loc, const struct handle h)

void	rule_free (struct rule *rule)

void	rule_print (const struct rule *rule)

struct set *	set_alloc (const struct location *loc)

struct set *	set_get (struct set *set)

void	set_free (struct set *set)

void	set_add_hash (struct set set, struct table table)

struct set *	set_lookup (const struct table table, const char name)

struct set *	set_lookup_global (uint32_t family, const char table, const char name)

void	set_print (const struct set *set)

void	set_print_plain (const struct set *s)

struct export *	export_alloc (uint32_t format)

void	export_free (struct export *e)

struct monitor *	monitor_alloc (uint32_t format, uint32_t type, const char *event)

void	monitor_free (struct monitor *m)

struct cmd *	cmd_alloc (enum cmd_ops op, enum cmd_obj obj, const struct handle h, const struct location loc, void *data)

void	cmd_free (struct cmd *cmd)

int	cmd_evaluate (struct eval_ctx ctx, struct cmd cmd)

struct error_record *	rule_postprocess (struct rule *rule)

int	do_command (struct netlink_ctx ctx, struct cmd cmd)

Enumeration Type Documentation

anonymous enum

Enumerator
CMD_MONITOR_OBJ_ANY
CMD_MONITOR_OBJ_TABLES
CMD_MONITOR_OBJ_CHAINS
CMD_MONITOR_OBJ_RULES
CMD_MONITOR_OBJ_SETS
CMD_MONITOR_OBJ_ELEMS
CMD_MONITOR_OBJ_MAX

enum chain_flags

enum chain_flags - chain flags

: chain is a base chain

Enumerator
CHAIN_F_BASECHAIN

enum cmd_obj

enum cmd_obj - command objects

: invalid : set element(s) : set : multiple sets : rule : chain : table : ruleset : expression : monitor : export

Enumerator
CMD_OBJ_INVALID
CMD_OBJ_SETELEM
CMD_OBJ_SET
CMD_OBJ_SETS
CMD_OBJ_RULE
CMD_OBJ_CHAIN
CMD_OBJ_TABLE
CMD_OBJ_RULESET
CMD_OBJ_EXPR
CMD_OBJ_MONITOR
CMD_OBJ_EXPORT

enum cmd_ops

enum cmd_ops - command operations

: invalid : add object (non-exclusive) : create object (exclusive) : insert object : delete object : list container : flush container : rename object : export the ruleset in a given format : event listener : describe an expression

Enumerator
CMD_INVALID
CMD_ADD
CMD_CREATE
CMD_INSERT
CMD_DELETE
CMD_LIST
CMD_FLUSH
CMD_RENAME
CMD_EXPORT
CMD_MONITOR
CMD_DESCRIBE

enum set_flags

: Set content is constant : set includes ranges and/or prefix expressions

Enumerator
SET_F_ANONYMOUS
SET_F_CONSTANT
SET_F_INTERVAL
SET_F_MAP

Function Documentation

void chain_add_hash	(	struct chain *	chain,
		struct table *	table
	)

References table::chains, and chain::list.

struct chain* chain_alloc ( const char * name )

References handle::chain, chain::chain, chain::handle, NULL, chain::rules, chain::scope, scope::symbols, xstrdup(), and xzalloc().

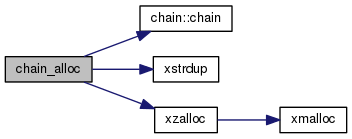

Here is the call graph for this function:

void chain_free ( struct chain * chain )

References chain::handle, handle_free(), rule::list, list_for_each_entry_safe, rule_free(), chain::rules, chain::scope, scope_release(), and xfree.

Referenced by cmd_free(), and table_free().

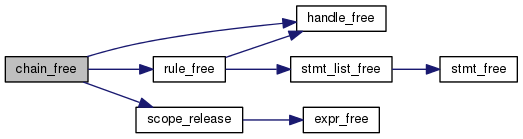

Here is the call graph for this function:

Here is the caller graph for this function:

const char* chain_hookname_lookup ( const char * name )

References NULL.

struct chain* chain_lookup	(	const struct table *	table,
		const struct handle *	h
	)

References handle::chain, chain::chain, table::chains, chain::handle, chain::list, list_for_each_entry, and NULL.

Here is the call graph for this function:

void chain_print_plain ( const struct chain * chain )

References handle::chain, CHAIN_F_BASECHAIN, handle::family, family2str(), chain::flags, chain::handle, chain::hooknum, chain::priority, handle::table, and chain::type.

Here is the call graph for this function:

const char* chain_type_name_lookup ( const char * name )

References NULL.

struct cmd* cmd_alloc	(	enum cmd_ops	op,
		enum cmd_obj	obj,
		const struct handle *	h,
		const struct location *	loc,
		void *	data
	)

References cmd::data, data, cmd::handle, cmd::list, cmd::location, cmd::obj, cmd::op, and xzalloc().

Here is the call graph for this function:

int cmd_evaluate	(	struct eval_ctx *	ctx,
		struct cmd *	cmd
	)

References BUG, eval_ctx::cmd, CMD_ADD, CMD_CREATE, CMD_DELETE, CMD_DESCRIBE, CMD_EXPORT, CMD_FLUSH, CMD_INSERT, CMD_LIST, CMD_MONITOR, CMD_RENAME, erec_create(), EREC_INFORMATIONAL, erec_print(), cmd::location, and cmd::op.

Here is the call graph for this function:

void cmd_free ( struct cmd * cmd )

References cmd::arg, BUG, cmd::chain, chain_free(), CMD_OBJ_CHAIN, CMD_OBJ_EXPORT, CMD_OBJ_EXPR, CMD_OBJ_MONITOR, CMD_OBJ_RULE, CMD_OBJ_SET, CMD_OBJ_SETELEM, CMD_OBJ_TABLE, cmd::data, cmd::export, export_free(), cmd::expr, expr_free(), cmd::handle, handle_free(), cmd::monitor, monitor_free(), NULL, cmd::obj, cmd::rule, rule_free(), cmd::set, set_free(), cmd::table, table_free(), and xfree.

Referenced by nft_run().

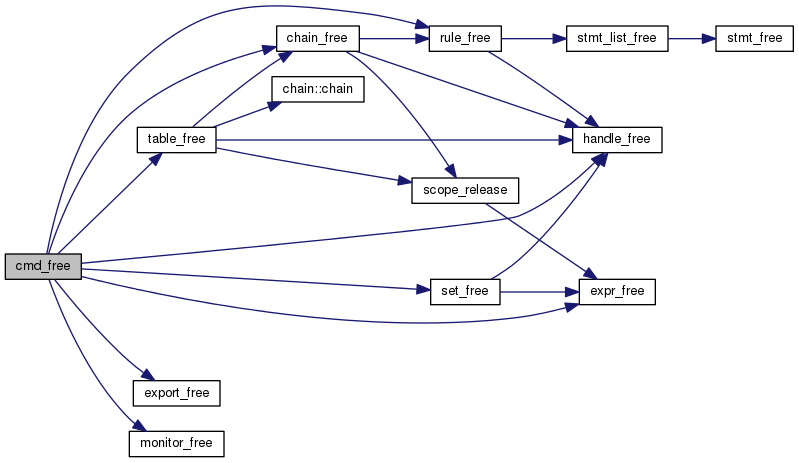

Here is the call graph for this function:

Here is the caller graph for this function:

int do_command	(	struct netlink_ctx *	ctx,
		struct cmd *	cmd
	)

References BUG, CMD_ADD, CMD_CREATE, CMD_DELETE, CMD_DESCRIBE, CMD_EXPORT, CMD_FLUSH, CMD_INSERT, CMD_LIST, CMD_MONITOR, CMD_RENAME, cmd::obj, and cmd::op.

struct export* export_alloc ( uint32_t format )

References format(), export::format, and xmalloc().

Here is the call graph for this function:

void export_free ( struct export * e )

References xfree.

Referenced by cmd_free().

Here is the caller graph for this function:

const char* family2str ( unsigned int family )

References NFPROTO_ARP, NFPROTO_BRIDGE, NFPROTO_INET, NFPROTO_IPV4, and NFPROTO_IPV6.

Referenced by chain_print_plain(), and set_print_plain().

Here is the caller graph for this function:

void handle_free ( struct handle * h )

References handle::chain, handle::comment, handle::set, handle::table, and xfree.

Referenced by chain_free(), cmd_free(), rule_free(), set_free(), and table_free().

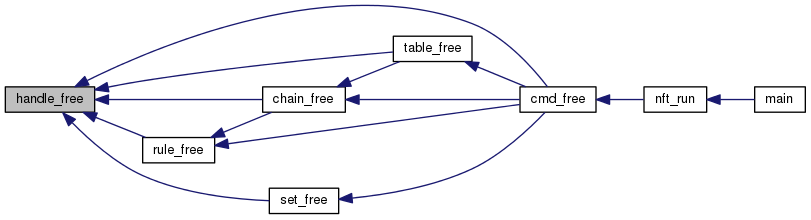

Here is the caller graph for this function:

void handle_merge	(	struct handle *	dst,
		const struct handle *	src
	)

References handle::chain, handle::comment, handle::family, handle::handle, NULL, handle::position, handle::set, handle::table, and xstrdup().

Here is the call graph for this function:

struct monitor* monitor_alloc	(	uint32_t	format,
		uint32_t	type,
		const char *	event
	)

References monitor::event, monitor::flags, format(), monitor::format, monitor::type, type, and xmalloc().

Here is the call graph for this function:

void monitor_free ( struct monitor * m )

References xfree.

Referenced by cmd_free().

Here is the caller graph for this function:

struct rule* rule_alloc	(	const struct location *	loc,
		const struct handle *	h
	)

References rule::handle, rule::list, rule::location, NULL, rule::stmts, and xzalloc().

Referenced by netlink_delinearize_rule().

Here is the call graph for this function:

Here is the caller graph for this function:

void rule_free ( struct rule * rule )

References rule::handle, handle_free(), stmt_list_free(), rule::stmts, and xfree.

Referenced by chain_free(), and cmd_free().

Here is the call graph for this function:

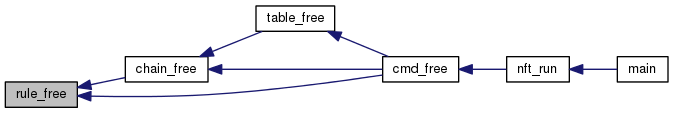

Here is the caller graph for this function:

struct error_record* rule_postprocess ( struct rule * rule )

References NULL.

void rule_print ( const struct rule * rule )

References handle::handle, rule::handle, handle_output, stmt::list, list_for_each_entry, stmt::ops, stmt_ops::print, and rule::stmts.

Here is the call graph for this function:

struct scope* scope_init	(	struct scope *	scope,
		const struct scope *	parent
	)

References scope::parent.

void scope_release ( const struct scope * scope )

References symbol::expr, expr_free(), symbol::identifier, symbol::list, list_for_each_entry_safe, scope::symbols, and xfree.

Referenced by chain_free(), and table_free().

Here is the call graph for this function:

Here is the caller graph for this function:

void set_add_hash	(	struct set *	set,
		struct table *	table
	)

References set::list, and table::sets.

struct set* set_alloc ( const struct location * loc )

References set::location, NULL, set::refcnt, and xzalloc().

Here is the call graph for this function:

void set_free ( struct set * set )

References expr_free(), set::handle, handle_free(), set::init, NULL, set::refcnt, and xfree.

Referenced by cmd_free().

Here is the call graph for this function:

Here is the caller graph for this function:

struct set* set_get ( struct set * set )

References set::refcnt.

Referenced by set_ref_expr_alloc().

Here is the caller graph for this function:

struct set* set_lookup	(	const struct table *	table,
		const char *	name
	)

References set::handle, set::list, list_for_each_entry, NULL, handle::set, and table::sets.

Referenced by set_lookup_global().

Here is the caller graph for this function:

struct set* set_lookup_global	(	uint32_t	family,
		const char *	table,
		const char *	name
	)

References handle::family, NULL, set_lookup(), handle::table, and table_lookup().

Here is the call graph for this function:

void set_print ( const struct set * set )

References print_fmt_options::tab.

void set_print_plain ( const struct set * s )

References handle::family, family2str(), set::handle, print_fmt_options::tab, and handle::table.

Here is the call graph for this function:

void symbol_bind	(	struct scope *	scope,
		const char *	identifier,
		struct expr *	expr
	)

References symbol::expr, symbol::identifier, symbol::list, scope::symbols, xstrdup(), and xzalloc().

Here is the call graph for this function:

struct symbol* symbol_lookup	(	const struct scope *	scope,
		const char *	identifier
	)

References symbol::identifier, symbol::list, list_for_each_entry, NULL, scope::parent, and scope::symbols.

void table_add_hash ( struct table * table )

References table::list.

struct table* table_alloc ( void )

References table::chains, table::scope, table::sets, scope::symbols, and xzalloc().

Here is the call graph for this function:

void table_free ( struct table * table )

References chain::chain, chain_free(), table::chains, table::handle, handle_free(), chain::list, list_for_each_entry_safe, table::scope, scope_release(), and xfree.

Referenced by cmd_free().

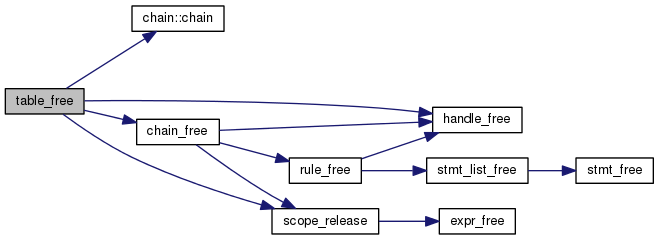

Here is the call graph for this function:

Here is the caller graph for this function:

struct table* table_lookup ( const struct handle * h )

References handle::family, table::handle, table::list, list_for_each_entry, NULL, and handle::table.

Referenced by netlink_delinearize_rule(), and set_lookup_global().

Here is the caller graph for this function:
