expression.h File Reference

#include <stdbool.h>
#include <gmputil.h>
#include <linux/netfilter/nf_tables.h>
#include <nftables.h>
#include <datatype.h>
#include <utils.h>
#include <list.h>
#include <payload.h>
#include <exthdr.h>
#include <meta.h>
#include <ct.h>

Include dependency graph for expression.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	expr_ctx
	struct expr_ctx - type context for symbol parsing during evaluation More...
struct	expr_ops
struct	expr

Macros
#define	OP_MAX   (__OP_MAX - 1)

Enumerations
enum	expr_types {   EXPR_INVALID,   EXPR_VERDICT,   EXPR_SYMBOL,   EXPR_VALUE,   EXPR_PREFIX,   EXPR_RANGE,   EXPR_PAYLOAD,   EXPR_EXTHDR,   EXPR_META,   EXPR_CT,   EXPR_CONCAT,   EXPR_LIST,   EXPR_SET,   EXPR_SET_REF,   EXPR_MAPPING,   EXPR_MAP,   EXPR_UNARY,   EXPR_BINOP,   EXPR_RELATIONAL }
	enum expr_types More...
enum	ops {   OP_INVALID,   OP_IMPLICIT,   OP_HTON,   OP_NTOH,   OP_LSHIFT,   OP_RSHIFT,   OP_AND,   OP_XOR,   OP_OR,   OP_EQ,   OP_NEQ,   OP_LT,   OP_GT,   OP_LTE,   OP_GTE,   OP_RANGE,   OP_FLAGCMP,   OP_LOOKUP,   __OP_MAX }
enum	symbol_types {   SYMBOL_VALUE,   SYMBOL_DEFINE,   SYMBOL_SET }

Variables
const char *	expr_op_symbols []

: expression name for diagnostics
struct expr_ops : expression type : function to clone type specific data : destructor, must release inner expressions : function to promote type and byteorder of inner types : function to print the expression : function to compare two expressions of the same types :update protocol context
#define	expr_error(msgs, expr, fmt, args...)   expr_binary_error(msgs, expr, NULL, fmt, ## args)
enum	expr_flags {   EXPR_F_CONSTANT = 0x1,   EXPR_F_SINGLETON = 0x2,   EXPR_F_PROTOCOL = 0x4,   EXPR_F_INTERVAL_END = 0x8 }
	enum expr_flags More...
struct expr *	expr_alloc (const struct location *loc, const struct expr_ops *ops, const struct datatype *dtype, enum byteorder byteorder, unsigned int len)
struct expr *	expr_clone (const struct expr *expr)
struct expr *	expr_get (struct expr *expr)
void	expr_free (struct expr *expr)
void	expr_print (const struct expr *expr)
bool	expr_cmp (const struct expr *e1, const struct expr *e2)
void	expr_describe (const struct expr *expr)
const struct datatype *	expr_basetype (const struct expr *expr)
void	expr_set_type (struct expr *expr, const struct datatype *dtype, enum byteorder byteorder)
int	expr_binary_error (struct list_head *msgs, const struct expr *e1, const struct expr *e2, const char *fmt,...) __gmp_fmtstring(4
struct expr *	unary_expr_alloc (const struct location *loc, enum ops op, struct expr *arg)
struct expr *	binop_expr_alloc (const struct location *loc, enum ops op, struct expr *left, struct expr *right)
struct expr *	relational_expr_alloc (const struct location *loc, enum ops op, struct expr *left, struct expr *right)
struct expr *	verdict_expr_alloc (const struct location *loc, int verdict, const char *chain)
struct expr *	symbol_expr_alloc (const struct location *loc, enum symbol_types type, struct scope *scope, const char *identifier)
struct expr *	constant_expr_alloc (const struct location *loc, const struct datatype *dtype, enum byteorder byteorder, unsigned int len, const void *data)
struct expr *	constant_expr_join (const struct expr *e1, const struct expr *e2)
struct expr *	constant_expr_splice (struct expr *expr, unsigned int len)
struct expr *	flag_expr_alloc (const struct location *loc, const struct datatype *dtype, enum byteorder byteorder, unsigned int len, unsigned long n)
struct expr *	bitmask_expr_to_binops (struct expr *expr)
struct expr *	prefix_expr_alloc (const struct location *loc, struct expr *expr, unsigned int prefix_len)
struct expr *	range_expr_alloc (const struct location *loc, struct expr *low, struct expr *high)
void	compound_expr_add (struct expr *compound, struct expr *expr)
void	compound_expr_remove (struct expr *compound, struct expr *expr)
struct expr *	concat_expr_alloc (const struct location *loc)
struct expr *	list_expr_alloc (const struct location *loc)
struct expr *	set_expr_alloc (const struct location *loc)
int	set_to_intervals (struct list_head *msgs, struct set *set)
struct expr *	mapping_expr_alloc (const struct location *loc, struct expr *from, struct expr *to)
struct expr *	map_expr_alloc (const struct location *loc, struct expr *arg, struct expr *list)
struct expr *	set_ref_expr_alloc (const struct location *loc, struct set *set)
void	range_expr_value_low (mpz_t rop, const struct expr *expr)
void	range_expr_value_high (mpz_t rop, const struct expr *expr)

Macro Definition Documentation

#define expr_error	(		msgs,
			expr,
			fmt,
			args...
	)		expr_binary_error(msgs, expr, NULL, fmt, ## args)

Referenced by payload_gen_dependency().

#define OP_MAX   (__OP_MAX - 1)

Enumeration Type Documentation

enum expr_flags

enum expr_flags

: constant expression : singleton (implies primary and constant) : expressions describes upper layer protocol : set member ends an open interval

Enumerator
EXPR_F_CONSTANT
EXPR_F_SINGLETON
EXPR_F_PROTOCOL
EXPR_F_INTERVAL_END

enum expr_types

enum expr_types

: uninitialized type, should not happen : nftables verdict expression : unparsed symbol : literal numeric or string expression : prefixed expression : literal range : payload expression : exthdr expression : meta expression : conntrack expression : concatenation : list of expressions : literal set : set reference : a single mapping (key : value) : map operation (expr map { EXPR_MAPPING, ... }) : byteorder conversion, generated during evaluation : binary operations (bitwise, shifts) : equality and relational expressions

Enumerator
EXPR_INVALID
EXPR_VERDICT
EXPR_SYMBOL
EXPR_VALUE
EXPR_PREFIX
EXPR_RANGE
EXPR_PAYLOAD
EXPR_EXTHDR
EXPR_META
EXPR_CT
EXPR_CONCAT
EXPR_LIST
EXPR_SET
EXPR_SET_REF
EXPR_MAPPING
EXPR_MAP
EXPR_UNARY
EXPR_BINOP
EXPR_RELATIONAL

enum ops

Enumerator
OP_INVALID
OP_IMPLICIT
OP_HTON
OP_NTOH
OP_LSHIFT
OP_RSHIFT
OP_AND
OP_XOR
OP_OR
OP_EQ
OP_NEQ
OP_LT
OP_GT
OP_LTE
OP_GTE
OP_RANGE
OP_FLAGCMP
OP_LOOKUP
__OP_MAX

enum symbol_types

Enumerator
SYMBOL_VALUE
SYMBOL_DEFINE
SYMBOL_SET

Function Documentation

struct expr* binop_expr_alloc	(	const struct location *	loc,
		enum ops	op,
		struct expr *	left,
		struct expr *	right
	)

References expr::byteorder, expr::dtype, expr_alloc(), expr::left, expr::op, and expr::right.

Referenced by bitmask_expr_to_binops().

Here is the call graph for this function:

Here is the caller graph for this function:

struct expr* bitmask_expr_to_binops

(

struct expr *

expr

)

References datatype::basetype, binop_expr_alloc(), expr::byteorder, expr::dtype, expr_free(), EXPR_VALUE, flag_expr_alloc(), expr::len, expr::location, mpz_popcount(), mpz_scan1(), NULL, OP_OR, expr::ops, expr_ops::type, datatype::type, TYPE_BITMASK, and expr::value.

Here is the call graph for this function:

void compound_expr_add	(	struct expr *	compound,
		struct expr *	expr
	)

References expr::expressions, expr::list, and expr::size.

Referenced by interval_map_decompose().

Here is the caller graph for this function:

void compound_expr_remove	(	struct expr *	compound,
		struct expr *	expr
	)

References expr::list, and expr::size.

Referenced by interval_map_decompose().

Here is the caller graph for this function:

struct expr* concat_expr_alloc

(

const struct location *

loc

)

struct expr* constant_expr_alloc	(	const struct location *	loc,
		const struct datatype *	dtype,
		enum byteorder	byteorder,
		unsigned int	len,
		const void *	data
	)

References BITS_PER_BYTE, div_round_up, expr_alloc(), EXPR_F_CONSTANT, EXPR_F_SINGLETON, expr::flags, mpz_import_data(), mpz_init2(), NULL, and expr::value.

Referenced by constant_expr_join(), constant_expr_splice(), flag_expr_alloc(), interval_map_decompose(), netlink_alloc_value(), payload_gen_dependency(), and symbolic_constant_parse().

Here is the call graph for this function:

Here is the caller graph for this function:

struct expr* constant_expr_join	(	const struct expr *	e1,
		const struct expr *	e2
	)

References BITS_PER_BYTE, expr::byteorder, BYTEORDER_INVALID, constant_expr_alloc(), data, EXPR_VALUE, invalid_type, len, expr::len, expr::location, mpz_export_data(), expr::ops, expr_ops::type, and expr::value.

Here is the call graph for this function:

struct expr* constant_expr_splice	(	struct expr *	expr,
		unsigned int	len
	)

References BYTEORDER_INVALID, constant_expr_alloc(), EXPR_VALUE, invalid_type, len, expr::len, expr::location, mask, mpz_and(), mpz_bitmask(), mpz_clear(), mpz_init2(), mpz_lshift_ui(), mpz_rshift_ui(), mpz_set(), NULL, expr::ops, expr_ops::type, and expr::value.

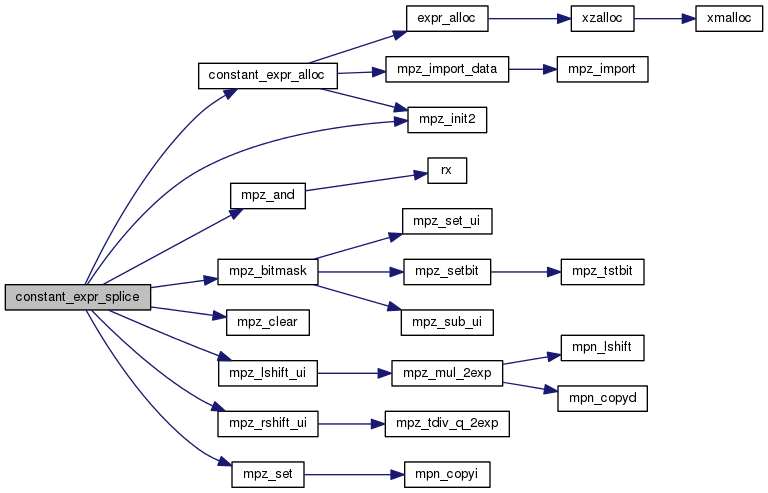

Here is the call graph for this function:

struct expr* expr_alloc	(	const struct location *	loc,
		const struct expr_ops *	ops,
		const struct datatype *	dtype,
		enum byteorder	byteorder,
		unsigned int	len
	)

References expr::byteorder, expr::dtype, len, expr::len, expr::list, expr::location, expr::ops, expr::refcnt, and xzalloc().

Referenced by binop_expr_alloc(), constant_expr_alloc(), ct_expr_alloc(), expr_clone(), exthdr_expr_alloc(), map_expr_alloc(), mapping_expr_alloc(), meta_expr_alloc(), payload_expr_alloc(), prefix_expr_alloc(), range_expr_alloc(), relational_expr_alloc(), set_ref_expr_alloc(), symbol_expr_alloc(), unary_expr_alloc(), and verdict_expr_alloc().

Here is the call graph for this function:

Here is the caller graph for this function:

const struct datatype* expr_basetype

(

const struct expr *

expr

)

References datatype::basetype, expr::dtype, NULL, and type.

Referenced by expr_describe(), and symbolic_constant_print().

Here is the caller graph for this function:

int expr_binary_error	(	struct list_head *	msgs,
		const struct expr *	e1,
		const struct expr *	e2,
		const char *	fmt,
			...
	)

struct expr* expr_clone

(

const struct expr *

expr

)

References expr::byteorder, expr_ops::clone, expr::dtype, expr_alloc(), expr::flags, expr::len, expr::location, expr::op, and expr::ops.

Referenced by interval_map_decompose().

Here is the call graph for this function:

Here is the caller graph for this function:

bool expr_cmp	(	const struct expr *	e1,
		const struct expr *	e2
	)

References expr_ops::cmp, EXPR_F_SINGLETON, expr::flags, expr::ops, and expr_ops::type.

void expr_describe

(

const struct expr *

expr

)

References datatype::basetype, BITS_PER_BYTE, datatype::desc, expr::dtype, expr_basetype(), expr::len, expr_ops::name, datatype::name, NULL, expr::ops, datatype::sym_tbl, symbol_table_print(), and TYPE_STRING.

Here is the call graph for this function:

void expr_free

(

struct expr *

expr

)

References expr_ops::destroy, NULL, expr::ops, expr::refcnt, and xfree.

Referenced by bitmask_expr_to_binops(), cmd_free(), interval_map_decompose(), scope_release(), and set_free().

Here is the caller graph for this function:

struct expr* expr_get

(

struct expr *

expr

)

References expr::refcnt.

Referenced by interval_map_decompose().

Here is the caller graph for this function:

void expr_print

(

const struct expr *

expr

)

References expr::ops, and expr_ops::print.

Referenced by set_to_intervals().

Here is the caller graph for this function:

void expr_set_type	(	struct expr *	expr,
		const struct datatype *	dtype,
		enum byteorder	byteorder
	)

References expr::byteorder, expr::dtype, expr::ops, and expr_ops::set_type.

struct expr* flag_expr_alloc	(	const struct location *	loc,
		const struct datatype *	dtype,
		enum byteorder	byteorder,
		unsigned int	len,
		unsigned long	n
	)

References constant_expr_alloc(), mpz_lshift_ui(), mpz_set_ui(), NULL, and expr::value.

Referenced by bitmask_expr_to_binops().

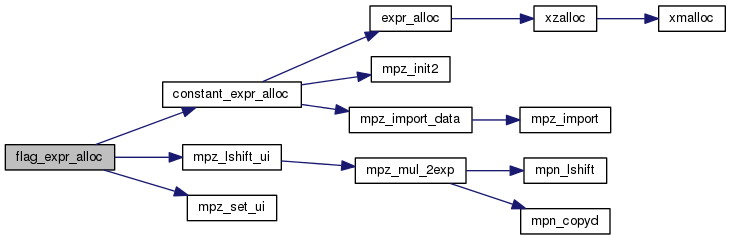

Here is the call graph for this function:

Here is the caller graph for this function:

struct expr* list_expr_alloc

(

const struct location *

loc

)

struct expr* map_expr_alloc	(	const struct location *	loc,
		struct expr *	arg,
		struct expr *	list
	)

References expr::arg, BYTEORDER_INVALID, expr_alloc(), invalid_type, expr::map, and expr::mappings.

Here is the call graph for this function:

struct expr* mapping_expr_alloc	(	const struct location *	loc,
		struct expr *	from,
		struct expr *	to
	)

References expr::byteorder, expr::dtype, expr_alloc(), expr::left, and expr::right.

Referenced by interval_map_decompose().

Here is the call graph for this function:

Here is the caller graph for this function:

struct expr* prefix_expr_alloc	(	const struct location *	loc,
		struct expr *	expr,
		unsigned int	prefix_len
	)

References BYTEORDER_INVALID, expr_alloc(), invalid_type, expr::prefix, and expr::prefix_len.

Referenced by interval_map_decompose().

Here is the call graph for this function:

Here is the caller graph for this function:

struct expr* range_expr_alloc	(	const struct location *	loc,
		struct expr *	low,
		struct expr *	high
	)

References BYTEORDER_INVALID, expr_alloc(), invalid_type, expr::left, and expr::right.

Referenced by interval_map_decompose().

Here is the call graph for this function:

Here is the caller graph for this function:

void range_expr_value_high	(	mpz_t	rop,
		const struct expr *	expr
	)

References BUG, EXPR_MAPPING, EXPR_PREFIX, EXPR_RANGE, EXPR_VALUE, expr::left, expr::len, mpz_add(), mpz_clear(), mpz_init_bitmask(), mpz_set(), expr_ops::name, expr::ops, expr::prefix, expr::prefix_len, range_expr_value_low(), expr::right, expr_ops::type, and expr::value.

Here is the call graph for this function:

void range_expr_value_low	(	mpz_t	rop,
		const struct expr *	expr
	)

References BUG, EXPR_MAPPING, EXPR_PREFIX, EXPR_RANGE, EXPR_VALUE, expr::left, mpz_set(), expr_ops::name, expr::ops, expr::prefix, expr_ops::type, and expr::value.

Referenced by range_expr_value_high().

Here is the call graph for this function:

Here is the caller graph for this function:

struct expr* relational_expr_alloc	(	const struct location *	loc,
		enum ops	op,
		struct expr *	left,
		struct expr *	right
	)

References BYTEORDER_INVALID, expr_alloc(), expr::left, expr::op, expr::right, and verdict_type.

Referenced by payload_gen_dependency().

Here is the call graph for this function:

Here is the caller graph for this function:

struct expr* set_expr_alloc

(

const struct location *

loc

)

Referenced by netlink_get_setelems().

Here is the caller graph for this function:

struct expr* set_ref_expr_alloc	(	const struct location *	loc,
		struct set *	set
	)

References expr_alloc(), EXPR_F_CONSTANT, expr::flags, set::keytype, expr::set, and set_get().

Here is the call graph for this function:

int set_to_intervals	(	struct list_head *	msgs,
		struct set *	set
	)

References BITS_PER_BYTE, expr_print(), set::init, seg_tree::keylen, elementary_interval::left, list_for_each_entry_safe, LIST_HEAD, pr_gmp_debug, and elementary_interval::right.

Here is the call graph for this function:

struct expr* symbol_expr_alloc	(	const struct location *	loc,
		enum symbol_types	type,
		struct scope *	scope,
		const char *	identifier
	)

References BYTEORDER_INVALID, expr_alloc(), expr::identifier, invalid_type, expr::scope, expr::symtype, type, and xstrdup().

Here is the call graph for this function:

struct expr* unary_expr_alloc	(	const struct location *	loc,
		enum ops	op,
		struct expr *	arg
	)

References expr::arg, BYTEORDER_INVALID, expr_alloc(), invalid_type, and expr::op.

Here is the call graph for this function:

struct expr* verdict_expr_alloc	(	const struct location *	loc,
		int	verdict,
		const char *	chain
	)

References BYTEORDER_INVALID, expr::chain, expr_alloc(), EXPR_F_CONSTANT, EXPR_F_SINGLETON, expr::flags, NULL, verdict, expr::verdict, and verdict_type.

Here is the call graph for this function:

Variable Documentation

const char* expr_op_symbols[]
