RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion Class Reference

#include <juce_RenderingHelpers.h>

Inheritance diagram for RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion:
Inheritance graph
[legend]

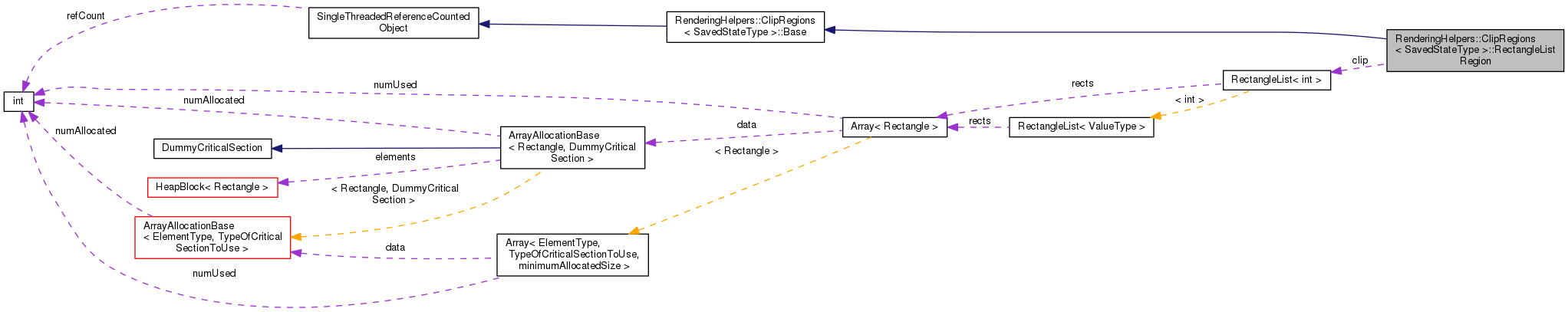

Collaboration diagram for RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion:
Collaboration graph
[legend]

Classes

class  SubRectangleIterator

class  SubRectangleIteratorFloat


Public Types

typedef Base::Ptr Ptr


Public Member Functions

 RectangleListRegion (const Rectangle< int > &r)

 RectangleListRegion (const RectangleList< int > &r)

 RectangleListRegion (const RectangleListRegion &other)

Ptr applyClipTo (const Ptr &target) const

bool clipRegionIntersects (const Rectangle< int > &r) const

Ptr clipToEdgeTable (const EdgeTable &et)

Ptr clipToImageAlpha (const Image &image, const AffineTransform &transform, const Graphics::ResamplingQuality quality)

Ptr clipToPath (const Path &p, const AffineTransform &transform)

Ptr clipToRectangle (const Rectangle< int > &r)

Ptr clipToRectangleList (const RectangleList< int > &r)

Ptr clone () const

void decReferenceCount () noexcept
 Decreases the object's reference count. More...

bool decReferenceCountWithoutDeleting () noexcept
 Decreases the object's reference count. More...

Ptr excludeClipRectangle (const Rectangle< int > &r)

void fillAllWithColour (SavedStateType &state, const PixelARGB colour, bool replaceContents) const

void fillAllWithGradient (SavedStateType &state, ColourGradient &gradient, const AffineTransform &transform, bool isIdentity) const

void fillRectWithColour (SavedStateType &state, const Rectangle< int > &area, const PixelARGB colour, bool replaceContents) const

void fillRectWithColour (SavedStateType &state, const Rectangle< float > &area, const PixelARGB colour) const

Rectangle< int > getClipBounds () const

int getReferenceCount () const noexcept
 Returns the object's current reference count. More...

void incReferenceCount () noexcept
 Increments the object's reference count. More...

template<class Renderer >
void iterate (Renderer &r) const noexcept

void renderImageTransformed (SavedStateType &state, const Image &src, const int alpha, const AffineTransform &transform, Graphics::ResamplingQuality quality, bool tiledFill) const

void renderImageUntransformed (SavedStateType &state, const Image &src, const int alpha, int x, int y, bool tiledFill) const

void translate (Point< int > delta)


Public Attributes

RectangleList< int > clip


Private Member Functions

RectangleListRegion & operator= (const RectangleListRegion &)

Ptr toEdgeTable () const


Member Typedef Documentation

◆ Ptr

template<class SavedStateType >
typedef Base::Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::Ptr

Constructor & Destructor Documentation

◆ RectangleListRegion() [1/3]

template<class SavedStateType >
RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::RectangleListRegion ( const Rectangle< int > &  r)
inline

◆ RectangleListRegion() [2/3]

template<class SavedStateType >
RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::RectangleListRegion ( const RectangleList< int > &  r)
inline

◆ RectangleListRegion() [3/3]

template<class SavedStateType >
RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::RectangleListRegion ( const RectangleListRegion &  other)
inline

Member Function Documentation

◆ applyClipTo()

template<class SavedStateType >
Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::applyClipTo ( const Ptr &  target) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipRegionIntersects()

template<class SavedStateType >
bool RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipRegionIntersects ( const Rectangle< int > &  r) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToEdgeTable()

template<class SavedStateType >
Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToEdgeTable ( const EdgeTable &  et)
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToImageAlpha()

template<class SavedStateType >
Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToImageAlpha ( const Image &  image,
const AffineTransform &  transform,
const Graphics::ResamplingQuality  quality
)
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToPath()

template<class SavedStateType >
Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToPath ( const Path &  p,
const AffineTransform &  transform
)
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToRectangle()

template<class SavedStateType >
Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToRectangle ( const Rectangle< int > &  r)
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToRectangleList()

template<class SavedStateType >
Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToRectangleList ( const RectangleList< int > &  r)
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clone()

template<class SavedStateType >
Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clone ( ) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ decReferenceCount()

void SingleThreadedReferenceCountedObject::decReferenceCount ( )
inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will be deleted.

References jassert.

◆ decReferenceCountWithoutDeleting()

bool SingleThreadedReferenceCountedObject::decReferenceCountWithoutDeleting ( )
inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will not be deleted, but this method will return true, allowing the caller to take care of deletion.

References jassert.

◆ excludeClipRectangle()

template<class SavedStateType >
Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::excludeClipRectangle ( const Rectangle< int > &  r)
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ fillAllWithColour()

template<class SavedStateType >
void RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::fillAllWithColour ( SavedStateType &  state,
const PixelARGB  colour,
bool  replaceContents
) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ fillAllWithGradient()

template<class SavedStateType >
void RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::fillAllWithGradient ( SavedStateType &  state,
ColourGradient &  gradient,
const AffineTransform &  transform,
bool  isIdentity
) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ fillRectWithColour() [1/2]

template<class SavedStateType >
void RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::fillRectWithColour ( SavedStateType &  state,
const Rectangle< int > &  area,
const PixelARGB  colour,
bool  replaceContents
) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ fillRectWithColour() [2/2]

template<class SavedStateType >
void RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::fillRectWithColour ( SavedStateType &  state,
const Rectangle< float > &  area,
const PixelARGB  colour
) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ getClipBounds()

template<class SavedStateType >
Rectangle<int> RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::getClipBounds ( ) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ getReferenceCount()

int SingleThreadedReferenceCountedObject::getReferenceCount ( ) const
inlinenoexceptinherited

Returns the object's current reference count.

◆ incReferenceCount()

void SingleThreadedReferenceCountedObject::incReferenceCount ( )
inlinenoexceptinherited

Increments the object's reference count.

This is done automatically by the smart pointer, but is public just in case it's needed for nefarious purposes.

◆ iterate()

template<class SavedStateType >
template<class Renderer >
void RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::iterate ( Renderer &  r) const
inlinenoexcept

References jassert.

◆ operator=()

template<class SavedStateType >
RectangleListRegion& RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::operator= ( const RectangleListRegion &  )
private

◆ renderImageTransformed()

template<class SavedStateType >
void RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::renderImageTransformed ( SavedStateType &  state,
const Image &  src,
const int  alpha,
const AffineTransform &  transform,
Graphics::ResamplingQuality  quality,
bool  tiledFill
) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ renderImageUntransformed()

template<class SavedStateType >
void RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::renderImageUntransformed ( SavedStateType &  state,
const Image &  src,
const int  alpha,
int  x,
int  y,
bool  tiledFill
) const
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ toEdgeTable()

template<class SavedStateType >
Ptr RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::toEdgeTable ( ) const
inlineprivate

◆ translate()

template<class SavedStateType >
void RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::translate ( Point< int >  delta)
inlinevirtual

Implements RenderingHelpers::ClipRegions< SavedStateType >::Base.

Member Data Documentation

◆ clip

template<class SavedStateType >
RectangleList<int> RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clip
The documentation for this class was generated from the following file:
