#include <juce_RenderingHelpers.h>

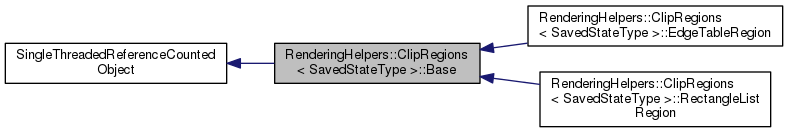

Inheritance diagram for RenderingHelpers::ClipRegions< SavedStateType >::Base:

Collaboration diagram for RenderingHelpers::ClipRegions< SavedStateType >::Base:

Public Types
typedef ReferenceCountedObjectPtr< Base >	Ptr

Public Member Functions
	Base ()

virtual	~Base ()

virtual Ptr	applyClipTo (const Ptr &target) const =0

virtual bool	clipRegionIntersects (const Rectangle< int > &) const =0

virtual Ptr	clipToEdgeTable (const EdgeTable &et)=0

virtual Ptr	clipToImageAlpha (const Image &, const AffineTransform &, const Graphics::ResamplingQuality)=0

virtual Ptr	clipToPath (const Path &, const AffineTransform &)=0

virtual Ptr	clipToRectangle (const Rectangle< int > &)=0

virtual Ptr	clipToRectangleList (const RectangleList< int > &)=0

virtual Ptr	clone () const =0

void	decReferenceCount () noexcept
	Decreases the object's reference count. More...

bool	decReferenceCountWithoutDeleting () noexcept
	Decreases the object's reference count. More...

virtual Ptr	excludeClipRectangle (const Rectangle< int > &)=0

virtual void	fillAllWithColour (SavedStateType &, const PixelARGB colour, bool replaceContents) const =0

virtual void	fillAllWithGradient (SavedStateType &, ColourGradient &, const AffineTransform &, bool isIdentity) const =0

virtual void	fillRectWithColour (SavedStateType &, const Rectangle< int > &, const PixelARGB colour, bool replaceContents) const =0

virtual void	fillRectWithColour (SavedStateType &, const Rectangle< float > &, const PixelARGB colour) const =0

virtual Rectangle< int >	getClipBounds () const =0

int	getReferenceCount () const noexcept
	Returns the object's current reference count. More...

void	incReferenceCount () noexcept
	Increments the object's reference count. More...

virtual void	renderImageTransformed (SavedStateType &, const Image &, const int alpha, const AffineTransform &, Graphics::ResamplingQuality, bool tiledFill) const =0

virtual void	renderImageUntransformed (SavedStateType &, const Image &, const int alpha, int x, int y, bool tiledFill) const =0

virtual void	translate (Point< int > delta)=0

Member Typedef Documentation

◆ Ptr

template<class SavedStateType >

typedef ReferenceCountedObjectPtr<Base> RenderingHelpers::ClipRegions< SavedStateType >::Base::Ptr

Constructor & Destructor Documentation

◆ Base()

template<class SavedStateType >

RenderingHelpers::ClipRegions< SavedStateType >::Base::Base ( )

inline

◆ ~Base()

template<class SavedStateType >

virtual RenderingHelpers::ClipRegions< SavedStateType >::Base::~Base ( )

inlinevirtual

Member Function Documentation

◆ applyClipTo()

template<class SavedStateType >

virtual Ptr RenderingHelpers::ClipRegions< SavedStateType >::Base::applyClipTo ( const Ptr & target ) const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipRegionIntersects()

template<class SavedStateType >

virtual bool RenderingHelpers::ClipRegions< SavedStateType >::Base::clipRegionIntersects ( const Rectangle< int > & ) const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToEdgeTable()

template<class SavedStateType >

virtual Ptr RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToEdgeTable ( const EdgeTable & et )

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToImageAlpha()

template<class SavedStateType >

virtual Ptr RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToImageAlpha	(	const Image &	,
		const AffineTransform &	,
		const Graphics::ResamplingQuality
	)

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToPath()

template<class SavedStateType >

virtual Ptr RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToPath	(	const Path &	,
		const AffineTransform &
	)

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToRectangle()

template<class SavedStateType >

virtual Ptr RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToRectangle ( const Rectangle< int > & )

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToRectangleList()

template<class SavedStateType >

virtual Ptr RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToRectangleList ( const RectangleList< int > & )

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clone()

template<class SavedStateType >

virtual Ptr RenderingHelpers::ClipRegions< SavedStateType >::Base::clone ( ) const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ decReferenceCount()

void SingleThreadedReferenceCountedObject::decReferenceCount ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will be deleted.

References jassert.

◆ decReferenceCountWithoutDeleting()

bool SingleThreadedReferenceCountedObject::decReferenceCountWithoutDeleting ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will not be deleted, but this method will return true, allowing the caller to take care of deletion.

References jassert.

◆ excludeClipRectangle()

template<class SavedStateType >

virtual Ptr RenderingHelpers::ClipRegions< SavedStateType >::Base::excludeClipRectangle ( const Rectangle< int > & )

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ fillAllWithColour()

template<class SavedStateType >

virtual void RenderingHelpers::ClipRegions< SavedStateType >::Base::fillAllWithColour	(	SavedStateType &	,
		const PixelARGB	colour,
		bool	replaceContents
	)		const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ fillAllWithGradient()

template<class SavedStateType >

virtual void RenderingHelpers::ClipRegions< SavedStateType >::Base::fillAllWithGradient	(	SavedStateType &	,
		ColourGradient &	,
		const AffineTransform &	,
		bool	isIdentity
	)		const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ fillRectWithColour() [1/2]

template<class SavedStateType >

virtual void RenderingHelpers::ClipRegions< SavedStateType >::Base::fillRectWithColour	(	SavedStateType &	,
		const Rectangle< int > &	,
		const PixelARGB	colour,
		bool	replaceContents
	)		const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ fillRectWithColour() [2/2]

template<class SavedStateType >

virtual void RenderingHelpers::ClipRegions< SavedStateType >::Base::fillRectWithColour	(	SavedStateType &	,
		const Rectangle< float > &	,
		const PixelARGB	colour
	)		const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ getClipBounds()

template<class SavedStateType >

virtual Rectangle<int> RenderingHelpers::ClipRegions< SavedStateType >::Base::getClipBounds ( ) const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ getReferenceCount()

int SingleThreadedReferenceCountedObject::getReferenceCount ( ) const

inlinenoexceptinherited

Returns the object's current reference count.

◆ incReferenceCount()

void SingleThreadedReferenceCountedObject::incReferenceCount ( )

inlinenoexceptinherited

Increments the object's reference count.

This is done automatically by the smart pointer, but is public just in case it's needed for nefarious purposes.

◆ renderImageTransformed()

template<class SavedStateType >

virtual void RenderingHelpers::ClipRegions< SavedStateType >::Base::renderImageTransformed	(	SavedStateType &	,
		const Image &	,
		const int	alpha,
		const AffineTransform &	,
		Graphics::ResamplingQuality	,
		bool	tiledFill
	)		const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

Referenced by RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::renderImage().

◆ renderImageUntransformed()

template<class SavedStateType >

virtual void RenderingHelpers::ClipRegions< SavedStateType >::Base::renderImageUntransformed	(	SavedStateType &	,
		const Image &	,
		const int	alpha,
		int	x,
		int	y,
		bool	tiledFill
	)		const

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

Referenced by RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::renderImage().

◆ translate()

template<class SavedStateType >

virtual void RenderingHelpers::ClipRegions< SavedStateType >::Base::translate ( Point< int > delta )

pure virtual

Implemented in RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

The documentation for this class was generated from the following file:

juce_RenderingHelpers.h
