cache.h File Reference

#include <netlink/netlink.h>
#include <netlink/msg.h>
#include <netlink/utils.h>
#include <netlink/object.h>
#include <netlink/cache-api.h>

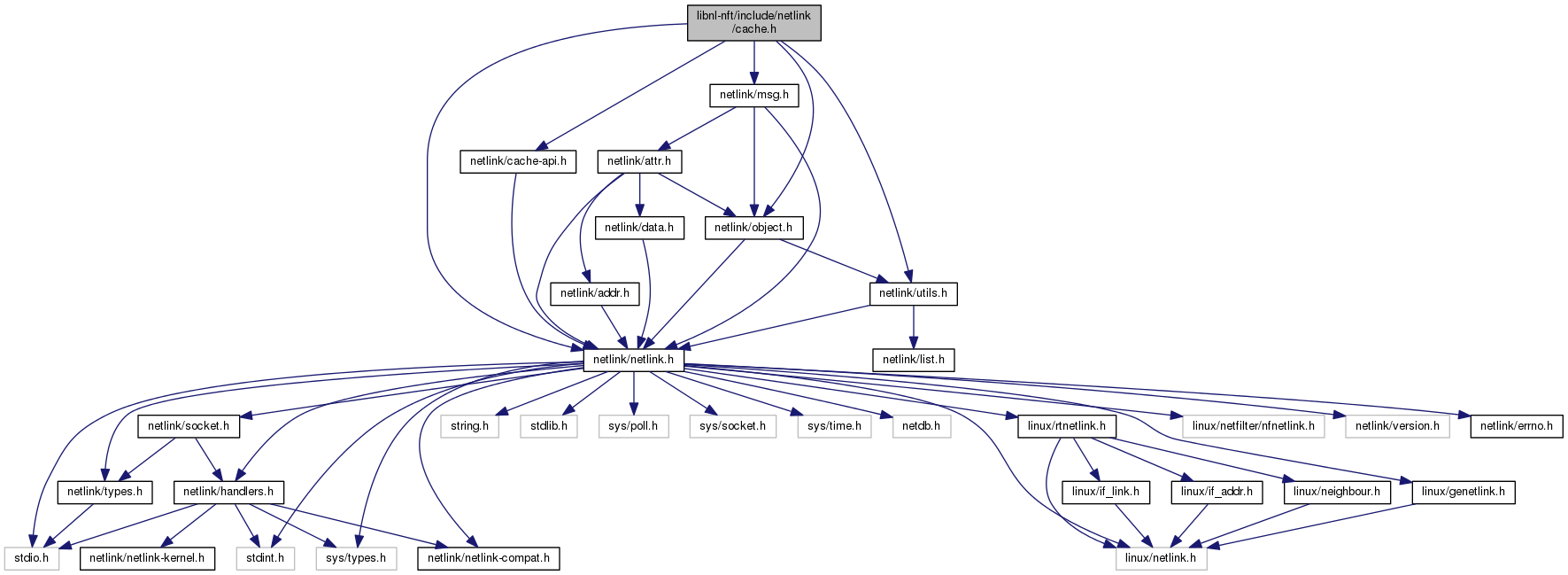

Include dependency graph for cache.h:

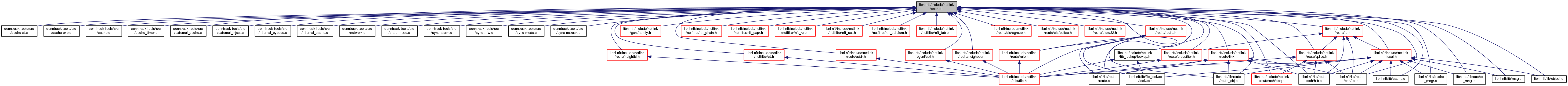

This graph shows which files directly or indirectly include this file:

Macros
#define	NL_AUTO_PROVIDE   1

Typedefs
typedef void(*	change_func_t )(struct nl_cache *, struct nl_object *, int)

Functions
int	nl_cache_nitems (struct nl_cache *)
	Return the number of items in the cache. More...
int	nl_cache_nitems_filter (struct nl_cache *, struct nl_object *)
	Return the number of items matching a filter in the cache. More...
struct nl_cache_ops *	nl_cache_get_ops (struct nl_cache *)
	Return the operations set of the cache. More...
struct nl_object *	nl_cache_get_first (struct nl_cache *)
	Return the first element in the cache. More...
struct nl_object *	nl_cache_get_last (struct nl_cache *)
	Return the last element in the cache. More...
struct nl_object *	nl_cache_get_next (struct nl_object *)
	Return the next element in the cache. More...
struct nl_object *	nl_cache_get_prev (struct nl_object *)
	Return the previous element in the cache. More...
struct nl_cache *	nl_cache_alloc (struct nl_cache_ops *)
	Allocate an empty cache. More...
int	nl_cache_alloc_and_fill (struct nl_cache_ops *, struct nl_sock *, struct nl_cache **)
int	nl_cache_alloc_name (const char *, struct nl_cache **)
	Allocate an empty cache based on type name. More...
struct nl_cache *	nl_cache_subset (struct nl_cache *, struct nl_object *)
	Allocate a new cache containing a subset of a cache. More...
void	nl_cache_clear (struct nl_cache *)
	Clear a cache. More...
void	nl_cache_free (struct nl_cache *)
	Free a cache. More...
int	nl_cache_add (struct nl_cache *, struct nl_object *)
	Add object to a cache. More...
int	nl_cache_parse_and_add (struct nl_cache *, struct nl_msg *)
	Parse a netlink message and add it to the cache. More...
void	nl_cache_remove (struct nl_object *)
	Removes an object from a cache. More...
int	nl_cache_refill (struct nl_sock *, struct nl_cache *)
	(Re)fill a cache with the contents in the kernel. More...
int	nl_cache_pickup (struct nl_sock *, struct nl_cache *)
	Pickup a netlink dump response and put it into a cache. More...
int	nl_cache_resync (struct nl_sock *, struct nl_cache *, change_func_t)
int	nl_cache_include (struct nl_cache *, struct nl_object *, change_func_t)
int	nl_cache_is_empty (struct nl_cache *)
	Returns true if the cache is empty. More...
void	nl_cache_mark_all (struct nl_cache *)
	Mark all objects in a cache. More...
void	nl_cache_dump (struct nl_cache *, struct nl_dump_params *)
	Dump all elements of a cache. More...
void	nl_cache_dump_filter (struct nl_cache *, struct nl_dump_params *, struct nl_object *)
	Dump all elements of a cache (filtered). More...
void	nl_cache_foreach (struct nl_cache *, void(*cb)(struct nl_object *, void *), void *arg)
	Call a callback on each element of the cache. More...
void	nl_cache_foreach_filter (struct nl_cache *, struct nl_object *, void(*cb)(structnl_object *, void *), void *arg)
struct nl_cache_ops *	nl_cache_ops_lookup (const char *)
	Lookup the set cache operations of a certain cache type. More...
struct nl_cache_ops *	nl_cache_ops_associate (int, int)
	Associate a message type to a set of cache operations. More...
struct nl_msgtype *	nl_msgtype_lookup (struct nl_cache_ops *, int)
	Lookup message type cache association. More...
void	nl_cache_ops_foreach (void(*cb)(struct nl_cache_ops *, void *), void *)
	Call a function for each registered cache operation. More...
int	nl_cache_mngt_register (struct nl_cache_ops *)
	Register a set of cache operations. More...
int	nl_cache_mngt_unregister (struct nl_cache_ops *)
	Unregister a set of cache operations. More...
void	nl_cache_mngt_provide (struct nl_cache *)
	Provide a cache for global use. More...
void	nl_cache_mngt_unprovide (struct nl_cache *)
	Unprovide a cache for global use. More...
struct nl_cache *	nl_cache_mngt_require (const char *)
	Demand the use of a global cache. More...
int	nl_cache_mngr_alloc (struct nl_sock *, int, int, struct nl_cache_mngr **)
	Allocate new cache manager. More...
int	nl_cache_mngr_add (struct nl_cache_mngr *, const char *, change_func_t, struct nl_cache **)
	Add cache responsibility to cache manager. More...
int	nl_cache_mngr_get_fd (struct nl_cache_mngr *)
	Get file descriptor. More...
int	nl_cache_mngr_poll (struct nl_cache_mngr *, int)
	Check for event notifications. More...
int	nl_cache_mngr_data_ready (struct nl_cache_mngr *)
	Receive available event notifications. More...
void	nl_cache_mngr_free (struct nl_cache_mngr *)
	Free cache manager and all caches. More...

Macro Definition Documentation

#define NL_AUTO_PROVIDE   1

Referenced by nl_cache_mngr_add().

Typedef Documentation

typedef void(* change_func_t)(struct nl_cache *, struct nl_object *, int)

Function Documentation

void nl_cache_foreach_filter	(	struct nl_cache *	,
		struct nl_object *	,
		void(*)(structnl_object *, void *)	cb,
		void *	arg
	)

Referenced by main(), rtnl_class_foreach_child(), rtnl_class_foreach_cls(), rtnl_qdisc_foreach_child(), and rtnl_qdisc_foreach_cls().

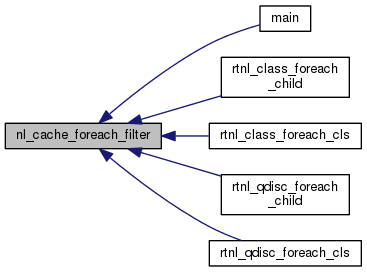

Here is the caller graph for this function:
