juce::littlefoot::Program Struct Reference

A reference to a block of memory which contains a complete program. More...

#include <juce_blocks_basics.h>

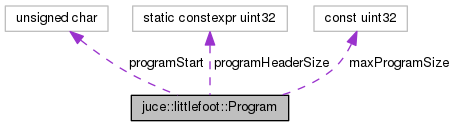

Collaboration diagram for juce::littlefoot::Program:

Public Member Functions
	Program (const void *data, uint32 totalMemorySize) noexcept
uint16	calculateChecksum () const noexcept
bool	checksumMatches () const noexcept
void	dumpAllFunctions (juce::OutputStream &out) const
	Calls dumpFunctionDisassembly() for all functions. More...
void	dumpFunctionDisassembly (juce::OutputStream &out, uint32 functionIndex) const
	Prints the assembly code for a given function. More...
const uint8 *	getFunctionEndAddress (uint32 functionIndex) const noexcept
FunctionID	getFunctionID (uint32 functionIndex) const noexcept
const uint8 *	getFunctionStartAddress (uint32 functionIndex) const noexcept
uint16	getHeapSizeBytes () const noexcept
	Returns the number of bytes of heap space the program needs. More...
uint32	getNumFunctions () const noexcept
uint16	getNumGlobals () const noexcept
	Returns the number of global variables the program uses. More...
juce::String	getOpDisassembly (const uint8 *&prog) const
uint32	getProgramSize () const noexcept
uint16	getStoredChecksum () const noexcept
uint32	getTotalSpaceNeeded () const noexcept

Static Public Member Functions
static int32	floatToInt (float value) noexcept
static uint8	getNumExtraBytesForOpcode (OpCode op) noexcept
	For a given op code, this returns the number of program bytes that follow it. More...
static float	intToFloat (int32 value) noexcept
static int16	readInt16 (const uint8 *d) noexcept
static int32	readInt32 (const uint8 *d) noexcept
static void	writeInt16 (uint8 *d, int16 v) noexcept
static void	writeInt32 (uint8 *d, int32 v) noexcept

Public Attributes
const uint32	maxProgramSize
const uint8 *	programStart = 0

Static Public Attributes
static constexpr uint32	programHeaderSize = 10

Private Member Functions
const uint8 *	getFunctionEntry (uint32 index) const noexcept

Static Private Member Functions
static void	copyFloatMem (void *dest, const void *src) noexcept

Detailed Description

A reference to a block of memory which contains a complete program.

Data format: 2 bytes - program checksum 2 bytes - program size 2 bytes - num functions 2 bytes - num globals 2 bytes - amount of heap space needed (bytes) 2 bytes - ID of function 1 2 bytes - byte offset of function 1 code 2 bytes - ID of function 2 2 bytes - byte offset of function 2 code etc.. ...function code...

Constructor & Destructor Documentation

Program()

juce::littlefoot::Program::Program ( const void *  data, uint32  totalMemorySize  )

inlinenoexcept

Member Function Documentation

calculateChecksum()

uint16 juce::littlefoot::Program::calculateChecksum ( ) const

inlinenoexcept

checksumMatches()

bool juce::littlefoot::Program::checksumMatches ( ) const

inlinenoexcept

copyFloatMem()

static void juce::littlefoot::Program::copyFloatMem ( void *  dest, const void *  src  )

inlinestaticprivatenoexcept

dumpAllFunctions()

void juce::littlefoot::Program::dumpAllFunctions ( juce::OutputStream &  out ) const

inline

Calls dumpFunctionDisassembly() for all functions.

dumpFunctionDisassembly()

void juce::littlefoot::Program::dumpFunctionDisassembly ( juce::OutputStream &  out, uint32  functionIndex  ) const

inline

Prints the assembly code for a given function.

floatToInt()

static int32 juce::littlefoot::Program::floatToInt ( float  value )

inlinestaticnoexcept

getFunctionEndAddress()

const uint8* juce::littlefoot::Program::getFunctionEndAddress ( uint32  functionIndex ) const

inlinenoexcept

getFunctionEntry()

const uint8* juce::littlefoot::Program::getFunctionEntry ( uint32  index ) const

inlineprivatenoexcept

getFunctionID()

FunctionID juce::littlefoot::Program::getFunctionID ( uint32  functionIndex ) const

inlinenoexcept

getFunctionStartAddress()

const uint8* juce::littlefoot::Program::getFunctionStartAddress ( uint32  functionIndex ) const

inlinenoexcept

getHeapSizeBytes()

uint16 juce::littlefoot::Program::getHeapSizeBytes ( ) const

inlinenoexcept

Returns the number of bytes of heap space the program needs.

getNumExtraBytesForOpcode()

static uint8 juce::littlefoot::Program::getNumExtraBytesForOpcode ( OpCode  op )

inlinestaticnoexcept

For a given op code, this returns the number of program bytes that follow it.

getNumFunctions()

uint32 juce::littlefoot::Program::getNumFunctions ( ) const

inlinenoexcept

getNumGlobals()

uint16 juce::littlefoot::Program::getNumGlobals ( ) const

inlinenoexcept

Returns the number of global variables the program uses.

getOpDisassembly()

juce::String juce::littlefoot::Program::getOpDisassembly ( const uint8 *&  prog ) const

inline

getProgramSize()

uint32 juce::littlefoot::Program::getProgramSize ( ) const

inlinenoexcept

getStoredChecksum()

uint16 juce::littlefoot::Program::getStoredChecksum ( ) const

inlinenoexcept

getTotalSpaceNeeded()

uint32 juce::littlefoot::Program::getTotalSpaceNeeded ( ) const

inlinenoexcept

intToFloat()

static float juce::littlefoot::Program::intToFloat ( int32  value )

inlinestaticnoexcept

readInt16()

static int16 juce::littlefoot::Program::readInt16 ( const uint8 *  d )

inlinestaticnoexcept

readInt32()

static int32 juce::littlefoot::Program::readInt32 ( const uint8 *  d )

inlinestaticnoexcept

writeInt16()

static void juce::littlefoot::Program::writeInt16 ( uint8 *  d, int16  v  )

inlinestaticnoexcept

writeInt32()

static void juce::littlefoot::Program::writeInt32 ( uint8 *  d, int32  v  )

inlinestaticnoexcept

Member Data Documentation

maxProgramSize

const uint32 juce::littlefoot::Program::maxProgramSize

programHeaderSize

constexpr uint32 juce::littlefoot::Program::programHeaderSize = 10

static

programStart

const uint8* juce::littlefoot::Program::programStart = 0

---

The documentation for this struct was generated from the following file:

• juce_blocks_basics.h
