juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion Class Reference

#include <juce_RenderingHelpers.h>

Inheritance diagram for juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion:
Inheritance graph
[legend]

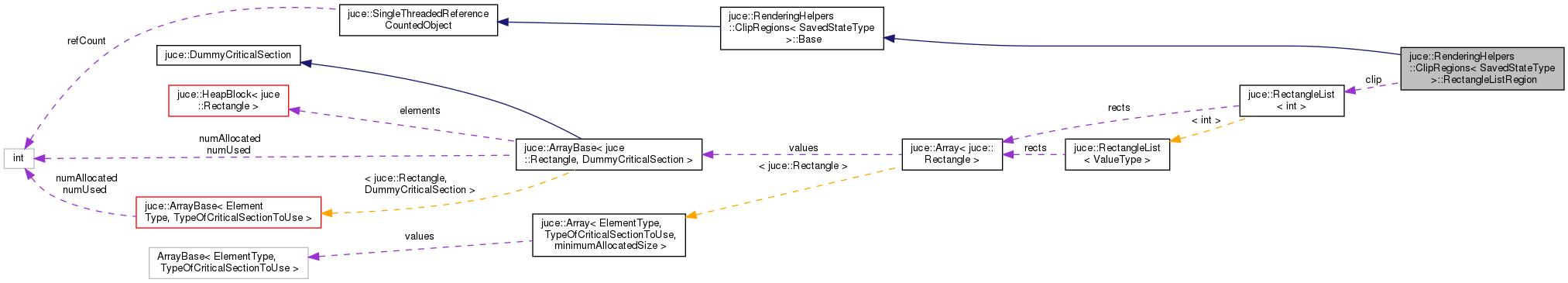

Collaboration diagram for juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion:
Collaboration graph
[legend]

Classes

class  SubRectangleIterator

class  SubRectangleIteratorFloat


Public Types

using Ptr = typename Base::Ptr


Public Member Functions

 RectangleListRegion (Rectangle< int > r)

 RectangleListRegion (const RectangleList< int > &r)

 RectangleListRegion (const RectangleListRegion &other)

Ptr applyClipTo (const Ptr &target) const override

bool clipRegionIntersects (Rectangle< int > r) const override

Ptr clipToEdgeTable (const EdgeTable &et) override

Ptr clipToImageAlpha (const Image &image, const AffineTransform &transform, Graphics::ResamplingQuality quality) override

Ptr clipToPath (const Path &p, const AffineTransform &transform) override

Ptr clipToRectangle (Rectangle< int > r) override

Ptr clipToRectangleList (const RectangleList< int > &r) override

Ptr clone () const override

void decReferenceCount () noexcept
 Decreases the object's reference count. More...

bool decReferenceCountWithoutDeleting () noexcept
 Decreases the object's reference count. More...

Ptr excludeClipRectangle (Rectangle< int > r) override

void fillAllWithColour (SavedStateType &state, PixelARGB colour, bool replaceContents) const override

void fillAllWithGradient (SavedStateType &state, ColourGradient &gradient, const AffineTransform &transform, bool isIdentity) const override

void fillRectWithColour (SavedStateType &state, Rectangle< int > area, PixelARGB colour, bool replaceContents) const override

void fillRectWithColour (SavedStateType &state, Rectangle< float > area, PixelARGB colour) const override

Rectangle< int > getClipBounds () const override

int getReferenceCount () const noexcept
 Returns the object's current reference count. More...

void incReferenceCount () noexcept
 Increments the object's reference count. More...

template<class Renderer >
void iterate (Renderer &r) const noexcept

void renderImageTransformed (SavedStateType &state, const Image &src, int alpha, const AffineTransform &transform, Graphics::ResamplingQuality quality, bool tiledFill) const override

void renderImageUntransformed (SavedStateType &state, const Image &src, int alpha, int x, int y, bool tiledFill) const override

void translate (Point< int > delta) override


Public Attributes

RectangleList< int > clip


Private Member Functions

RectangleListRegion & operator= (const RectangleListRegion &)

Ptr toEdgeTable () const


Member Typedef Documentation

◆ Ptr

template<class SavedStateType >
using juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::Ptr = typename Base::Ptr

Constructor & Destructor Documentation

◆ RectangleListRegion() [1/3]

template<class SavedStateType >
juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::RectangleListRegion ( Rectangle< int >  r)
inline

◆ RectangleListRegion() [2/3]

template<class SavedStateType >
juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::RectangleListRegion ( const RectangleList< int > &  r)
inline

◆ RectangleListRegion() [3/3]

template<class SavedStateType >
juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::RectangleListRegion ( const RectangleListRegion &  other)
inline

Member Function Documentation

◆ applyClipTo()

template<class SavedStateType >
Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::applyClipTo ( const Ptr &  target) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipRegionIntersects()

template<class SavedStateType >
bool juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipRegionIntersects ( Rectangle< int >  r) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToEdgeTable()

template<class SavedStateType >
Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToEdgeTable ( const EdgeTable &  et)
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToImageAlpha()

template<class SavedStateType >
Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToImageAlpha ( const Image &  image,
const AffineTransform &  transform,
Graphics::ResamplingQuality  quality
)
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToPath()

template<class SavedStateType >
Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToPath ( const Path &  p,
const AffineTransform &  transform
)
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToRectangle()

template<class SavedStateType >
Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToRectangle ( Rectangle< int >  r)
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clipToRectangleList()

template<class SavedStateType >
Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clipToRectangleList ( const RectangleList< int > &  r)
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ clone()

template<class SavedStateType >
Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clone ( ) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ decReferenceCount()

void juce::SingleThreadedReferenceCountedObject::decReferenceCount ( )
inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will be deleted.

References jassert.

◆ decReferenceCountWithoutDeleting()

bool juce::SingleThreadedReferenceCountedObject::decReferenceCountWithoutDeleting ( )
inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will not be deleted, but this method will return true, allowing the caller to take care of deletion.

References jassert.

◆ excludeClipRectangle()

template<class SavedStateType >
Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::excludeClipRectangle ( Rectangle< int >  r)
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ fillAllWithColour()

template<class SavedStateType >
void juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::fillAllWithColour ( SavedStateType &  state,
PixelARGB  colour,
bool  replaceContents
) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ fillAllWithGradient()

template<class SavedStateType >
void juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::fillAllWithGradient ( SavedStateType &  state,
ColourGradient &  gradient,
const AffineTransform &  transform,
bool  isIdentity
) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ fillRectWithColour() [1/2]

template<class SavedStateType >
void juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::fillRectWithColour ( SavedStateType &  state,
Rectangle< int >  area,
PixelARGB  colour,
bool  replaceContents
) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ fillRectWithColour() [2/2]

template<class SavedStateType >
void juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::fillRectWithColour ( SavedStateType &  state,
Rectangle< float >  area,
PixelARGB  colour
) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ getClipBounds()

template<class SavedStateType >
Rectangle<int> juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::getClipBounds ( ) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ getReferenceCount()

int juce::SingleThreadedReferenceCountedObject::getReferenceCount ( ) const
inlinenoexceptinherited

Returns the object's current reference count.

◆ incReferenceCount()

void juce::SingleThreadedReferenceCountedObject::incReferenceCount ( )
inlinenoexceptinherited

Increments the object's reference count.

This is done automatically by the smart pointer, but is public just in case it's needed for nefarious purposes.

◆ iterate()

template<class SavedStateType >
template<class Renderer >
void juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::iterate ( Renderer &  r) const
inlinenoexcept

References jassert.

◆ operator=()

template<class SavedStateType >
RectangleListRegion& juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::operator= ( const RectangleListRegion &  )
private

◆ renderImageTransformed()

template<class SavedStateType >
void juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::renderImageTransformed ( SavedStateType &  state,
const Image &  src,
int  alpha,
const AffineTransform &  transform,
Graphics::ResamplingQuality  quality,
bool  tiledFill
) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ renderImageUntransformed()

template<class SavedStateType >
void juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::renderImageUntransformed ( SavedStateType &  state,
const Image &  src,
int  alpha,
int  x,
int  y,
bool  tiledFill
) const
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

◆ toEdgeTable()

template<class SavedStateType >
Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::toEdgeTable ( ) const
inlineprivate

◆ translate()

template<class SavedStateType >
void juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::translate ( Point< int >  delta)
inlineoverridevirtual

Implements juce::RenderingHelpers::ClipRegions< SavedStateType >::Base.

Member Data Documentation

◆ clip

template<class SavedStateType >
RectangleList<int> juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion::clip
The documentation for this class was generated from the following file:
