Utility class for linearly smoothed values like volume etc. More...

#include <juce_LinearSmoothedValue.h>

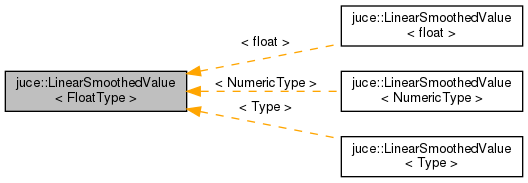

Inheritance diagram for juce::LinearSmoothedValue< FloatType >:

Collaboration diagram for juce::LinearSmoothedValue< FloatType >:

Public Member Functions
	LinearSmoothedValue () noexcept
	Constructor. More...

	LinearSmoothedValue (FloatType initialValue) noexcept
	Constructor. More...

void	applyGain (FloatType *samples, int numSamples) noexcept
	Applies a linear smoothed gain to a stream of samples S[i] *= gain. More...

void	applyGain (FloatType samplesOut, const FloatType samplesIn, int numSamples) noexcept
	Computes output as linear smoothed gain applied to a stream of samples. More...

void	applyGain (AudioBuffer< FloatType > &buffer, int numSamples) noexcept
	Applies a linear smoothed gain to a buffer. More...

FloatType	getNextValue () noexcept
	Compute the next value. More...

FloatType	getTargetValue () const noexcept
	Returns the target value towards which the smoothed value is currently moving. More...

bool	isSmoothing () const noexcept
	Returns true if the current value is currently being interpolated. More...

void	reset (double sampleRate, double rampLengthInSeconds) noexcept
	Reset to a new sample rate and ramp length. More...

void	setValue (FloatType newValue, bool force=false) noexcept
	Set a new target value. More...

FloatType	skip (int numSamples) noexcept
	Skip the next numSamples samples. More...

Private Attributes
int	countdown = 0

FloatType	currentValue = 0

FloatType	step = 0

int	stepsToTarget = 0

FloatType	target = 0

Detailed Description

template<typename FloatType>
class juce::LinearSmoothedValue< FloatType >

Utility class for linearly smoothed values like volume etc.

that should not change abruptly but as a linear ramp, to avoid audio glitches.

{Audio}

Constructor & Destructor Documentation

◆ LinearSmoothedValue() [1/2]

template<typename FloatType>

juce::LinearSmoothedValue< FloatType >::LinearSmoothedValue ( )

inlinenoexcept

Constructor.

◆ LinearSmoothedValue() [2/2]

template<typename FloatType>

juce::LinearSmoothedValue< FloatType >::LinearSmoothedValue ( FloatType initialValue )

inlinenoexcept

Constructor.

Member Function Documentation

◆ applyGain() [1/3]

template<typename FloatType>

void juce::LinearSmoothedValue< FloatType >::applyGain	(	FloatType *	samples,
		int	numSamples
	)

inlinenoexcept

Applies a linear smoothed gain to a stream of samples S[i] *= gain.

Parameters

samples	Pointer to a raw array of samples
numSamples	Length of array of samples

◆ applyGain() [2/3]

template<typename FloatType>

void juce::LinearSmoothedValue< FloatType >::applyGain	(	FloatType *	samplesOut,
		const FloatType *	samplesIn,
		int	numSamples
	)

inlinenoexcept

Computes output as linear smoothed gain applied to a stream of samples.

Sout[i] = Sin[i] * gain

Parameters

samplesOut	A pointer to a raw array of output samples
samplesIn	A pointer to a raw array of input samples
numSamples	The length of the array of samples

◆ applyGain() [3/3]

template<typename FloatType>

void juce::LinearSmoothedValue< FloatType >::applyGain	(	AudioBuffer< FloatType > &	buffer,
		int	numSamples
	)

inlinenoexcept

Applies a linear smoothed gain to a buffer.

◆ getNextValue()

template<typename FloatType>

FloatType juce::LinearSmoothedValue< FloatType >::getNextValue ( )

inlinenoexcept

Compute the next value.

Returns: Smoothed value

Referenced by juce::LinearSmoothedValue< Type >::applyGain(), juce::dsp::Oscillator< SampleType >::process(), juce::Reverb::processMono(), juce::dsp::Oscillator< SampleType >::processSample(), and juce::Reverb::processStereo().

◆ getTargetValue()

template<typename FloatType>

FloatType juce::LinearSmoothedValue< FloatType >::getTargetValue ( ) const

inlinenoexcept

Returns the target value towards which the smoothed value is currently moving.

Referenced by juce::dsp::Oscillator< SampleType >::getFrequency().

◆ isSmoothing()

template<typename FloatType>

bool juce::LinearSmoothedValue< FloatType >::isSmoothing ( ) const

inlinenoexcept

Returns true if the current value is currently being interpolated.

Referenced by juce::LinearSmoothedValue< Type >::applyGain(), and juce::dsp::Oscillator< SampleType >::process().

◆ reset()

template<typename FloatType>

void juce::LinearSmoothedValue< FloatType >::reset	(	double	sampleRate,
		double	rampLengthInSeconds
	)

inlinenoexcept

Reset to a new sample rate and ramp length.

Parameters

sampleRate	The sampling rate
rampLengthInSeconds	The duration of the ramp in seconds

Referenced by juce::dsp::Oscillator< SampleType >::reset(), juce::Reverb::setSampleRate(), and juce::dsp::Bias< FloatType >::updateRamp().

◆ setValue()

template<typename FloatType>

void juce::LinearSmoothedValue< FloatType >::setValue	(	FloatType	newValue,
		bool	force = `false`
	)

inlinenoexcept

Set a new target value.

Parameters

newValue	The new target value
force	If true, the value will be set immediately, bypassing the ramp

Referenced by juce::Reverb::setDamping(), juce::dsp::Oscillator< SampleType >::setFrequency(), juce::Reverb::setParameters(), juce::dsp::LadderFilter< Type >::updateCutoffFreq(), and juce::dsp::LadderFilter< Type >::updateResonance().

◆ skip()

template<typename FloatType>

FloatType juce::LinearSmoothedValue< FloatType >::skip ( int numSamples )

inlinenoexcept

Skip the next numSamples samples.

This is identical to calling getNextValue numSamples times. It returns the new current value.

See also: getNextValue

private

Referenced by juce::LinearSmoothedValue< Type >::applyGain(), juce::LinearSmoothedValue< Type >::getNextValue(), juce::LinearSmoothedValue< Type >::getTargetValue(), juce::LinearSmoothedValue< Type >::reset(), juce::LinearSmoothedValue< Type >::setValue(), and juce::LinearSmoothedValue< Type >::skip().

The documentation for this class was generated from the following file:

juce_LinearSmoothedValue.h
