#include <juce_ios_Audio.h>

Inheritance diagram for iOSAudioIODevice:

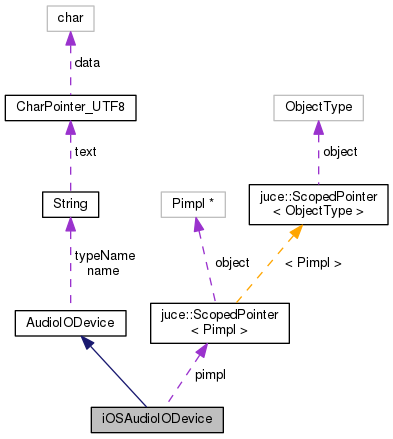

Collaboration diagram for iOSAudioIODevice:

[legend]

Public Member Functions
void	close () override
	Closes and releases the device if it's open. More...

BigInteger	getActiveInputChannels () const override
	Returns a mask showing which of the available input channels are currently enabled. More...

BigInteger	getActiveOutputChannels () const override
	Returns a mask showing which of the available output channels are currently enabled. More...

AudioPlayHead *	getAudioPlayHead () const

Array< int >	getAvailableBufferSizes () override
	Returns the set of buffer sizes that are available. More...

Array< double >	getAvailableSampleRates () override
	Returns the set of sample-rates this device supports. More...

int	getCurrentBitDepth () override
	Returns the device's current physical bit-depth. More...

int	getCurrentBufferSizeSamples () override
	Returns the buffer size that the device is currently using. More...

double	getCurrentSampleRate () override
	Returns the sample rate that the device is currently using. More...

int	getDefaultBufferSize () override
	Returns the default buffer-size to use. More...

StringArray	getInputChannelNames () override
	Returns the names of all the available input channels on this device. More...

int	getInputLatencyInSamples () override
	Returns the device's input latency. More...

String	getLastError () override
	Returns the last error that happened if anything went wrong. More...

const String &	getName () const noexcept
	Returns the device's name, (as set in the constructor). More...

StringArray	getOutputChannelNames () override
	Returns the names of all the available output channels on this device. More...

int	getOutputLatencyInSamples () override
	Returns the device's output latency. More...

const String &	getTypeName () const noexcept
	Returns the type of the device. More...

virtual bool	hasControlPanel () const
	True if this device can show a pop-up control panel for editing its settings. More...

bool	isInterAppAudioConnected () const

bool	isOpen () override
	Returns true if the device is still open. More...

bool	isPlaying () override
	Returns true if the device is still calling back. More...

String	open (const BigInteger &, const BigInteger &, double, int) override
	Tries to open the device ready to play. More...

bool	setAudioPreprocessingEnabled (bool) override
	On devices which support it, this allows automatic gain control or other mic processing to be disabled. More...

void	setMidiMessageCollector (MidiMessageCollector *)

virtual bool	showControlPanel ()
	Shows a device-specific control panel if there is one. More...

void	start (AudioIODeviceCallback *) override
	Starts the device actually playing. More...

void	stop () override
	Stops the device playing. More...

void	switchApplication ()

Protected Attributes
String	name

String	typeName

Private Member Functions
	iOSAudioIODevice (const String &)

Private Attributes
ScopedPointer< Pimpl >	pimpl

Friends
struct	AudioSessionHolder

struct	iOSAudioIODeviceType

struct	Pimpl

Constructor & Destructor Documentation

◆ iOSAudioIODevice()

iOSAudioIODevice::iOSAudioIODevice ( const String & )

private

Member Function Documentation

◆ close()

void iOSAudioIODevice::close ( )

overridevirtual

Closes and releases the device if it's open.

Implements AudioIODevice.

◆ getActiveInputChannels()

BigInteger iOSAudioIODevice::getActiveInputChannels ( ) const

overridevirtual

Returns a mask showing which of the available input channels are currently enabled.

See also: getInputChannelNames

Implements AudioIODevice.

◆ getActiveOutputChannels()

BigInteger iOSAudioIODevice::getActiveOutputChannels ( ) const

overridevirtual

Returns a mask showing which of the available output channels are currently enabled.

See also: getOutputChannelNames

Implements AudioIODevice.

◆ getAudioPlayHead()

AudioPlayHead* iOSAudioIODevice::getAudioPlayHead ( ) const

◆ getAvailableBufferSizes()

Array<int> iOSAudioIODevice::getAvailableBufferSizes ( )

overridevirtual

Returns the set of buffer sizes that are available.

See also: getCurrentBufferSizeSamples, getDefaultBufferSize

Implements AudioIODevice.

◆ getAvailableSampleRates()

Array<double> iOSAudioIODevice::getAvailableSampleRates ( )

overridevirtual

Returns the set of sample-rates this device supports.

See also: getCurrentSampleRate

Implements AudioIODevice.

◆ getCurrentBitDepth()

int iOSAudioIODevice::getCurrentBitDepth ( )

overridevirtual

Returns the device's current physical bit-depth.

If the device isn't actually open, this value doesn't really mean much.

Implements AudioIODevice.

◆ getCurrentBufferSizeSamples()

int iOSAudioIODevice::getCurrentBufferSizeSamples ( )

overridevirtual

Returns the buffer size that the device is currently using.

If the device isn't actually open, this value doesn't really mean much.

Implements AudioIODevice.

◆ getCurrentSampleRate()

double iOSAudioIODevice::getCurrentSampleRate ( )

overridevirtual

Returns the sample rate that the device is currently using.

If the device isn't actually open, this value doesn't really mean much.

Implements AudioIODevice.

◆ getDefaultBufferSize()

int iOSAudioIODevice::getDefaultBufferSize ( )

overridevirtual

Returns the default buffer-size to use.

Returns: a number of samples

See also: getAvailableBufferSizes

Implements AudioIODevice.

◆ getInputChannelNames()

StringArray iOSAudioIODevice::getInputChannelNames ( )

overridevirtual

Returns the names of all the available input channels on this device.

To find out which of these are currently in use, call getActiveInputChannels().

Implements AudioIODevice.

◆ getInputLatencyInSamples()

int iOSAudioIODevice::getInputLatencyInSamples ( )

overridevirtual

Returns the device's input latency.

This is the delay in samples between some audio actually arriving at the soundcard, and the callback getting passed this block of data.

Implements AudioIODevice.

◆ getLastError()

String iOSAudioIODevice::getLastError ( )

overridevirtual

Returns the last error that happened if anything went wrong.

Implements AudioIODevice.

◆ getName()

const String& AudioIODevice::getName ( ) const

inlinenoexceptinherited

Returns the device's name, (as set in the constructor).

◆ getOutputChannelNames()

StringArray iOSAudioIODevice::getOutputChannelNames ( )

overridevirtual

Returns the names of all the available output channels on this device.

To find out which of these are currently in use, call getActiveOutputChannels().

Implements AudioIODevice.

◆ getOutputLatencyInSamples()

int iOSAudioIODevice::getOutputLatencyInSamples ( )

overridevirtual

Returns the device's output latency.

This is the delay in samples between a callback getting a block of data, and that data actually getting played.

Implements AudioIODevice.

◆ getTypeName()

const String& AudioIODevice::getTypeName ( ) const

inlinenoexceptinherited

Returns the type of the device.

E.g. "CoreAudio", "ASIO", etc. - this comes from the AudioIODeviceType that created it.

◆ hasControlPanel()

virtual bool AudioIODevice::hasControlPanel ( ) const

virtualinherited

True if this device can show a pop-up control panel for editing its settings.

This is generally just true of ASIO devices. If true, you can call showControlPanel() to display it.

◆ isInterAppAudioConnected()

bool iOSAudioIODevice::isInterAppAudioConnected ( ) const

◆ isOpen()

bool iOSAudioIODevice::isOpen ( )

overridevirtual

Returns true if the device is still open.

A device might spontaneously close itself if something goes wrong, so this checks if it's still open.

Implements AudioIODevice.

◆ isPlaying()

bool iOSAudioIODevice::isPlaying ( )

overridevirtual

Returns true if the device is still calling back.

The device might mysteriously stop, so this checks whether it's still playing.

Implements AudioIODevice.

◆ open()

String iOSAudioIODevice::open	(	const BigInteger &	inputChannels,
		const BigInteger &	outputChannels,
		double	sampleRate,
		int	bufferSizeSamples
	)

overridevirtual

Tries to open the device ready to play.

Parameters

inputChannels	a BigInteger in which a set bit indicates that the corresponding input channel should be enabled
outputChannels	a BigInteger in which a set bit indicates that the corresponding output channel should be enabled
sampleRate	the sample rate to try to use - to find out which rates are available, see getAvailableSampleRates()
bufferSizeSamples	the size of i/o buffer to use - to find out the available buffer sizes, see getAvailableBufferSizes()

Returns: an error description if there's a problem, or an empty string if it succeeds in opening the device

See also: close

Implements AudioIODevice.

◆ setAudioPreprocessingEnabled()

bool iOSAudioIODevice::setAudioPreprocessingEnabled ( bool shouldBeEnabled )

overridevirtual

On devices which support it, this allows automatic gain control or other mic processing to be disabled.

If the device doesn't support this operation, it'll return false.

Reimplemented from AudioIODevice.

◆ setMidiMessageCollector()

void iOSAudioIODevice::setMidiMessageCollector ( MidiMessageCollector * )

◆ showControlPanel()

virtual bool AudioIODevice::showControlPanel ( )

virtualinherited

Shows a device-specific control panel if there is one.

This should only be called for devices which return true from hasControlPanel().

◆ start()

void iOSAudioIODevice::start ( AudioIODeviceCallback * callback )

overridevirtual

Starts the device actually playing.

This must be called after the device has been opened.

Parameters

callback the callback to use for streaming the data.

See also: AudioIODeviceCallback, open

Implements AudioIODevice.

◆ stop()

void iOSAudioIODevice::stop ( )

overridevirtual

Stops the device playing.

Once a device has been started, this will stop it. Any pending calls to the callback class will be flushed before this method returns.

Implements AudioIODevice.

◆ switchApplication()

void iOSAudioIODevice::switchApplication ( )

Friends And Related Function Documentation

◆ AudioSessionHolder

friend struct AudioSessionHolder

friend

◆ iOSAudioIODeviceType

friend struct iOSAudioIODeviceType

friend

◆ Pimpl

friend struct Pimpl

friend

Member Data Documentation

◆ name

String AudioIODevice::name

protectedinherited

◆ pimpl

ScopedPointer<Pimpl> iOSAudioIODevice::pimpl

private

◆ typeName

String AudioIODevice::typeName

protectedinherited

The documentation for this class was generated from the following file:

juce_ios_Audio.h
