PathFlatteningIterator Class Reference

Flattens a Path object into a series of straight-line sections. More...

#include <juce_PathIterator.h>

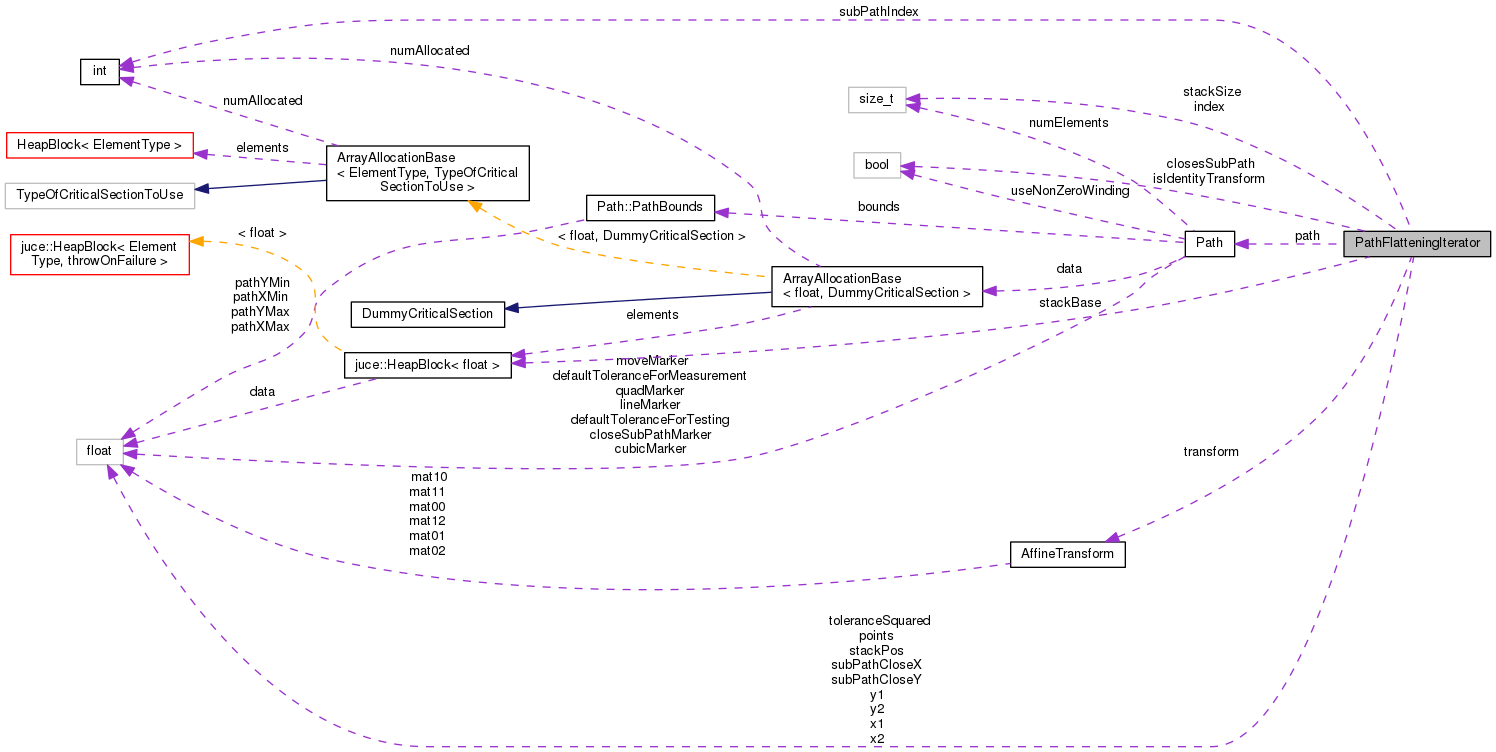

Collaboration diagram for PathFlatteningIterator:

Public Member Functions
	PathFlatteningIterator (const Path &path, const AffineTransform &transform=AffineTransform(), float tolerance=Path::defaultToleranceForMeasurement)
	Creates a PathFlatteningIterator. More...
	~PathFlatteningIterator ()
	Destructor. More...
bool	isLastInSubpath () const noexcept
	Returns true if the current segment is the last in the current sub-path. More...
bool	next ()
	Fetches the next line segment from the path. More...

Public Attributes
bool	closesSubPath
	Indicates whether the current line segment is closing a sub-path. More...
int	subPathIndex
	The index of the current line within the current sub-path. More...
float	x1
	The x position of the start of the current line segment. More...
float	x2
	The x position of the end of the current line segment. More...
float	y1
	The y position of the start of the current line segment. More...
float	y2
	The y position of the end of the current line segment. More...

Private Attributes
size_t	index = 0
const bool	isIdentityTransform
const Path &	path
float *	points
HeapBlock< float >	stackBase { 32 }
float *	stackPos
size_t	stackSize = 32
float	subPathCloseX = 0
float	subPathCloseY = 0
const float	toleranceSquared
const AffineTransform	transform

Detailed Description

Flattens a Path object into a series of straight-line sections.

Use one of these to iterate through a Path object, and it will convert all the curves into line sections so it's easy to render or perform geometric operations on.

See also

Path

Constructor & Destructor Documentation

PathFlatteningIterator()

PathFlatteningIterator::PathFlatteningIterator	(	const Path &	path,
		const AffineTransform &	transform = AffineTransform(),
		float	tolerance = Path::defaultToleranceForMeasurement
	)

Creates a PathFlatteningIterator.

After creation, use the next() method to initialise the fields in the object with the first line's position.

Parameters

path	the path to iterate along
transform	a transform to apply to each point in the path being iterated
tolerance	the amount by which the curves are allowed to deviate from the lines into which they are being broken down - a higher tolerance contains less lines, so can be generated faster, but will be less smooth.

~PathFlatteningIterator()

PathFlatteningIterator::~PathFlatteningIterator

(

)

Destructor.

Member Function Documentation

isLastInSubpath()

bool PathFlatteningIterator::isLastInSubpath ( ) const

noexcept

Returns true if the current segment is the last in the current sub-path.

next()

bool PathFlatteningIterator::next

(

)

Fetches the next line segment from the path.

This will update the member variables x1, y1, x2, y2, subPathIndex and closesSubPath so that they describe the new line segment.

Returns

false when there are no more lines to fetch.

Member Data Documentation

closesSubPath

bool PathFlatteningIterator::closesSubPath

Indicates whether the current line segment is closing a sub-path.

If the current line is the one that connects the end of a sub-path back to the start again, this will be true.

index

size_t PathFlatteningIterator::index = 0

private

isIdentityTransform

const bool PathFlatteningIterator::isIdentityTransform

private

path

const Path& PathFlatteningIterator::path

private

points

float* PathFlatteningIterator::points

private

stackBase

HeapBlock<float> PathFlatteningIterator::stackBase { 32 }

private

stackPos

float* PathFlatteningIterator::stackPos

private

stackSize

size_t PathFlatteningIterator::stackSize = 32

private

subPathCloseX

float PathFlatteningIterator::subPathCloseX = 0

private

subPathCloseY

float PathFlatteningIterator::subPathCloseY = 0

private

subPathIndex

int PathFlatteningIterator::subPathIndex

The index of the current line within the current sub-path.

E.g. you can use this to see whether the line is the first one in the subpath by seeing if it's 0.

toleranceSquared

const float PathFlatteningIterator::toleranceSquared

private

transform

const AffineTransform PathFlatteningIterator::transform

private

x1

float PathFlatteningIterator::x1

The x position of the start of the current line segment.

x2

float PathFlatteningIterator::x2

The x position of the end of the current line segment.

y1

float PathFlatteningIterator::y1

The y position of the start of the current line segment.

y2

float PathFlatteningIterator::y2

The y position of the end of the current line segment.

---

The documentation for this class was generated from the following file:

• juce_PathIterator.h
